Product Name

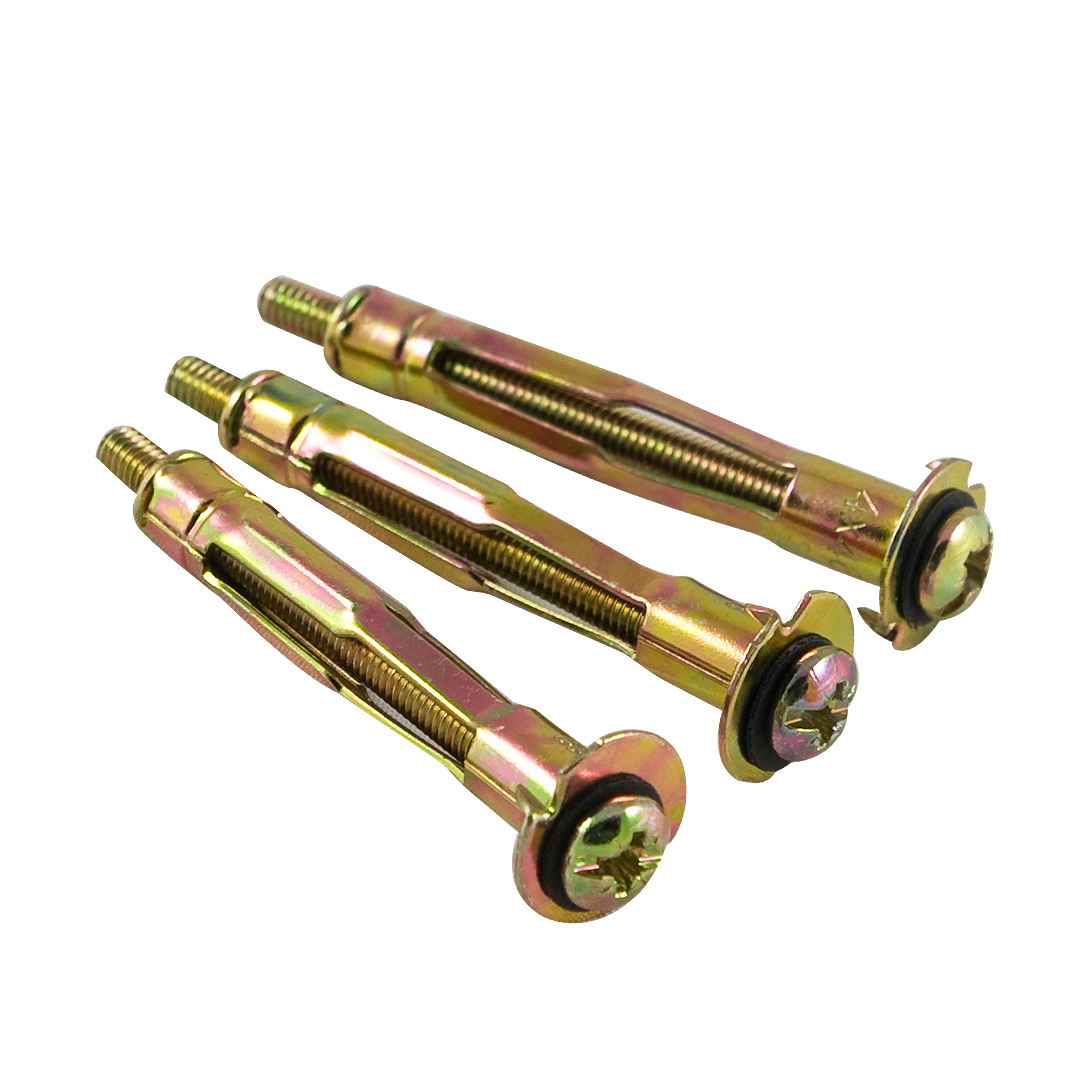

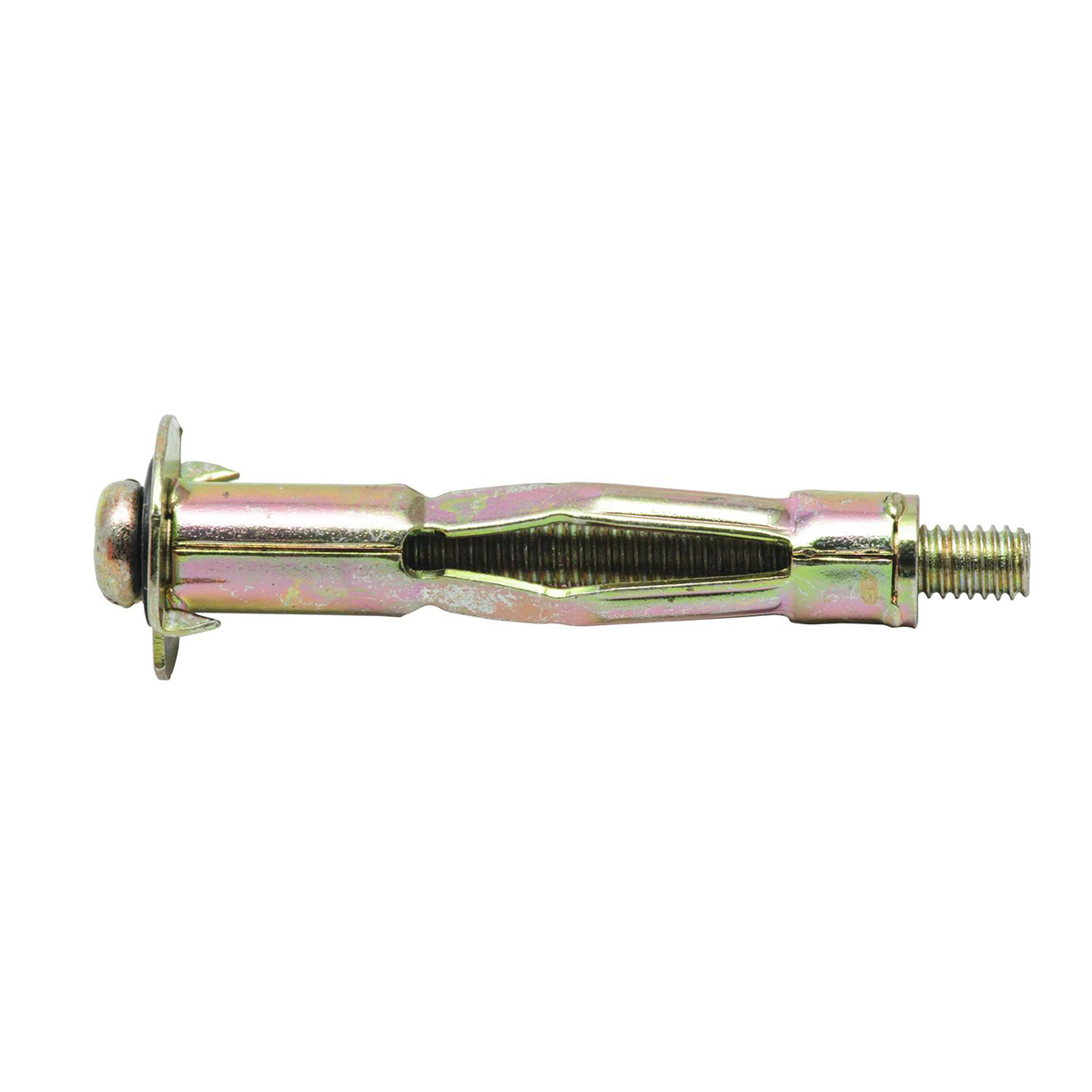

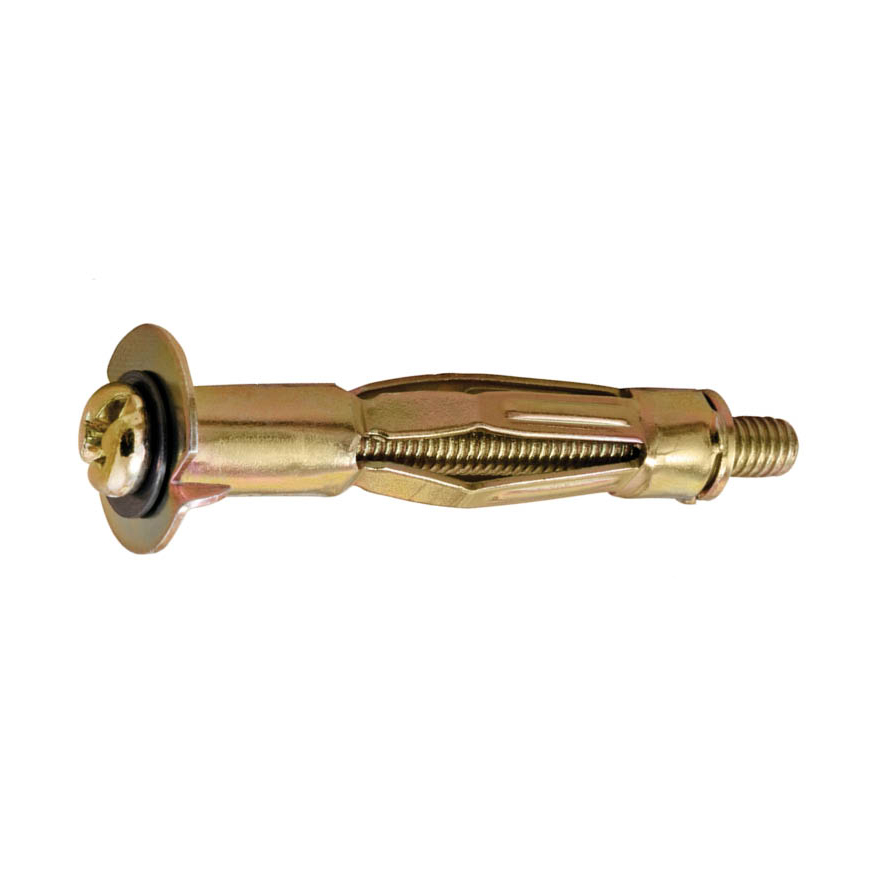

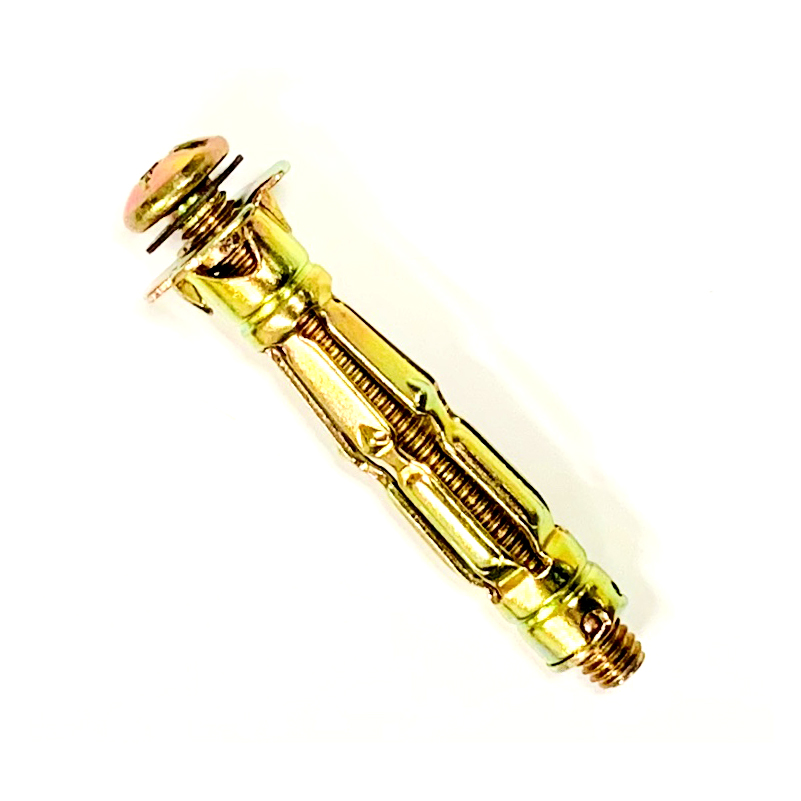

Yellow Zinc Molly Bolts
Details Information
Introduction

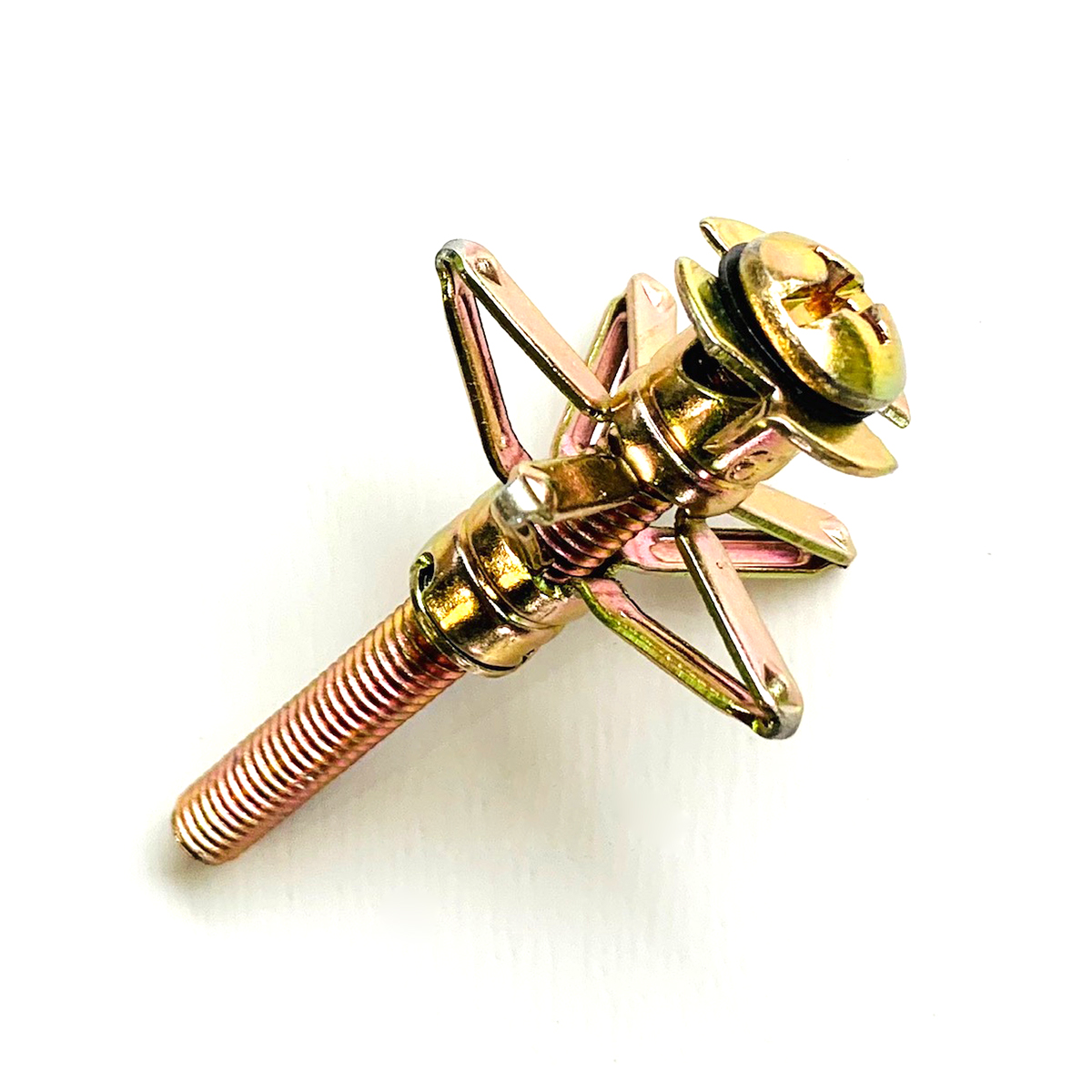

A molly or molly bolt (often misspelled moly) is a type of screw fastener that fastens objects to plaster or gypsum board hollow walls by providing an anchor to be lodged inside a hole and expanded once in position.
Features
Yellow zinc plated to resist rust
Organized in a storage case for quick, easy identification
Secures drywall, sheetrock, and some types of paneling
Applications
Larger sizes permit reasonably heavy objects, such as shelving, flatscreen-TV mounts or central-heating radiators, to be attached to drywall in locations where there is no stud behind the drywall. For heavy objects, multiple molly bolts may be required.
Parameters
| Raw Material | Carbon steel, Stainless steel |
| Surface | Zinc plated,Yellow Zinc Plated, HDG, Plain finish |
| Application | Concrete, Brick, Block or Stone |
| Length | 20~80mm |
| Main Markets | America, Europe |
| Screw Thread Diameter | Anchor Length(MM) | Screw Length(MM) | Pull Out Loadling (KG) |
| M4 | 20 | 28 | 30 |
| 32 | 41 |
| 38 | 47 |
| 46 | 54 |
| 54 | 61 |
| 60 | 67 |
| M5 | 37 | 45 | 45 |
| 52 | 60 |
| 65 | 74 |
| 80 | 89 |
| M6 | 37 | 45 | 53 |
| 52 | 60 |
| 65 | 74 |
| 80 | 88 |
| M8 | 37 | 45 | 65 |
| 52 | 65 |
| 65 | 75 |
| 80 | 90 |
