Basic Core Definition

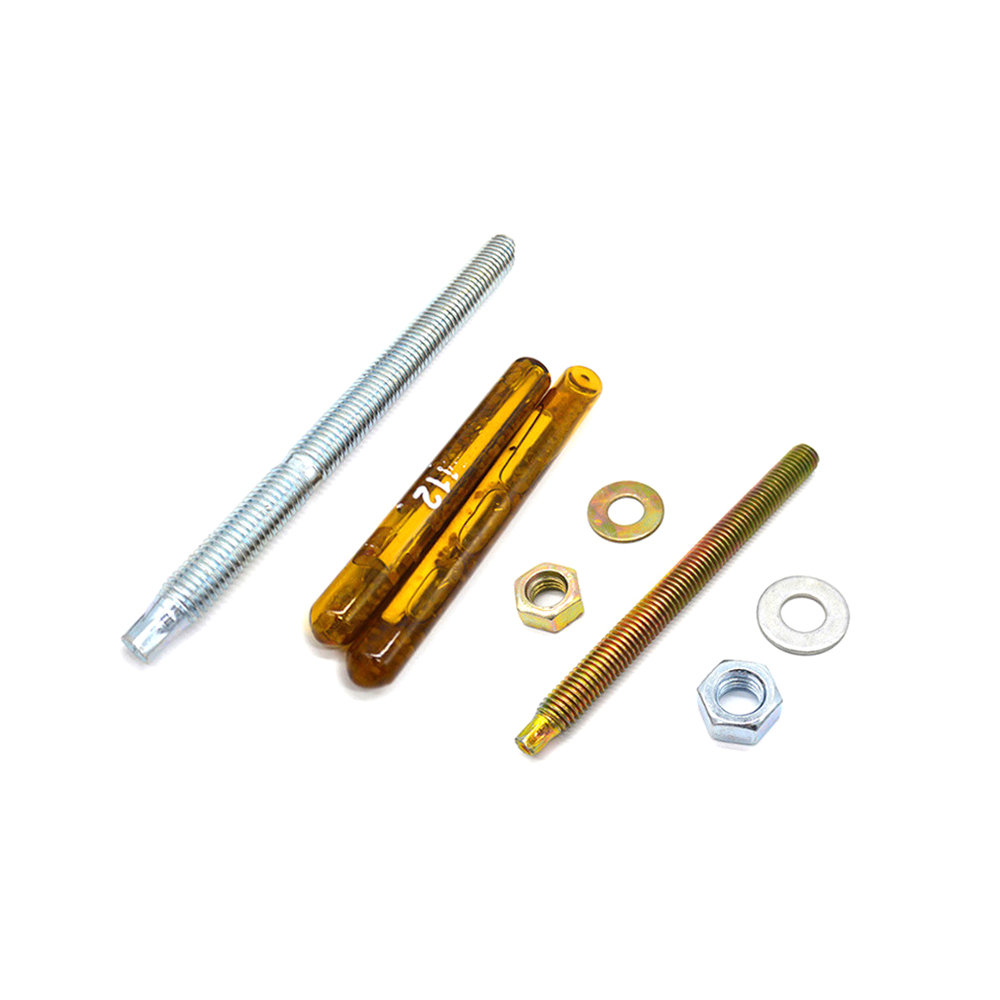

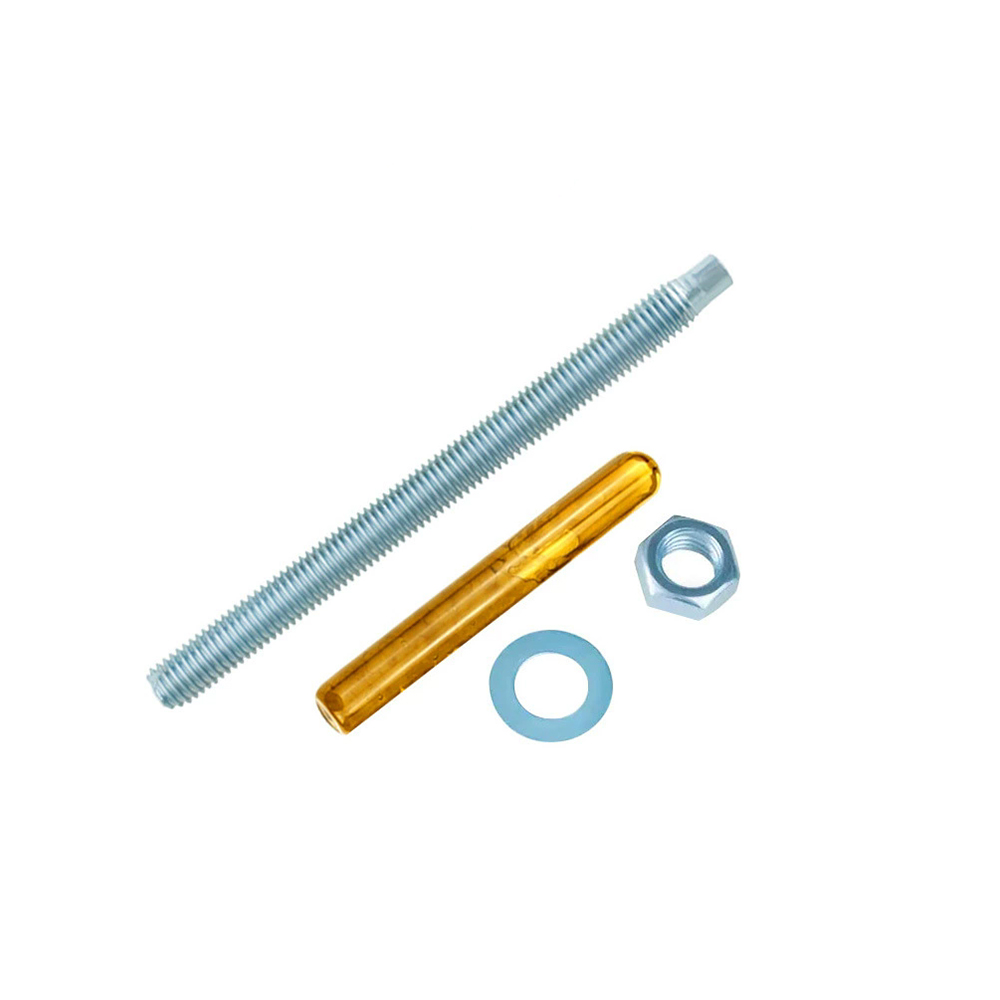

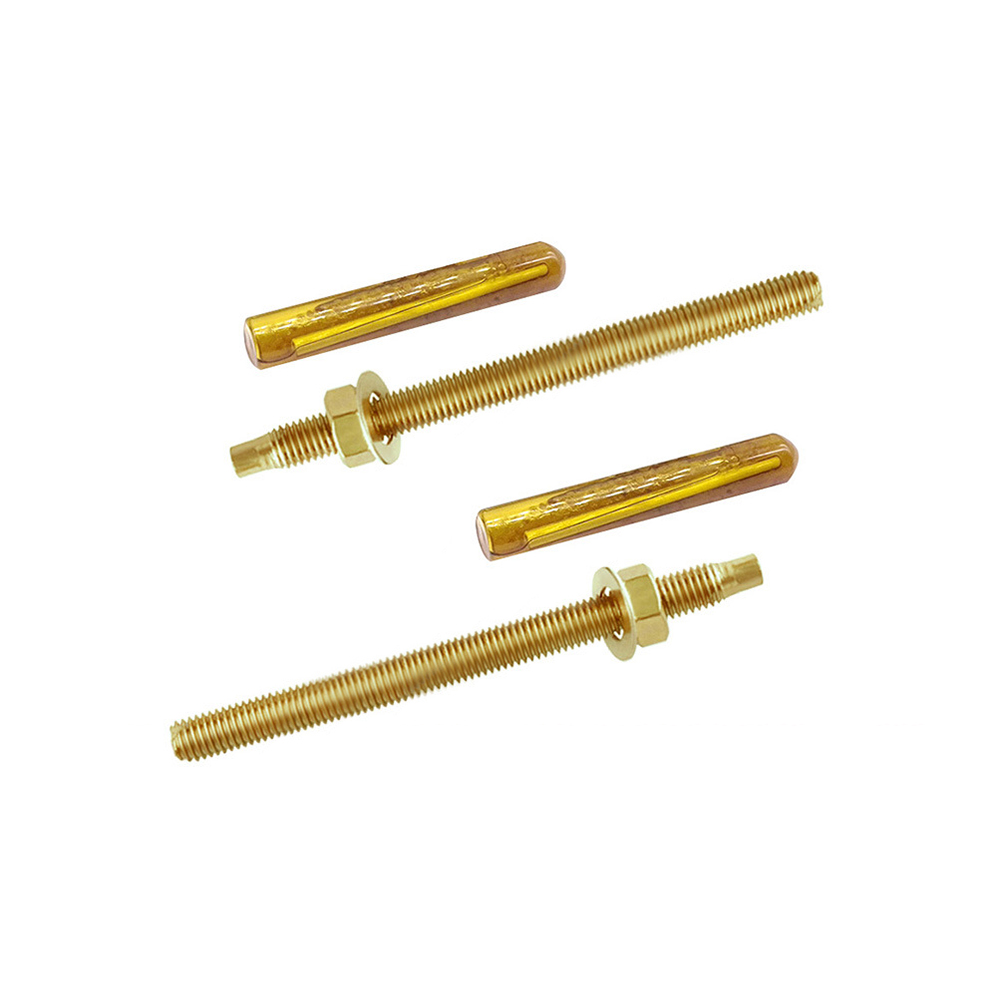

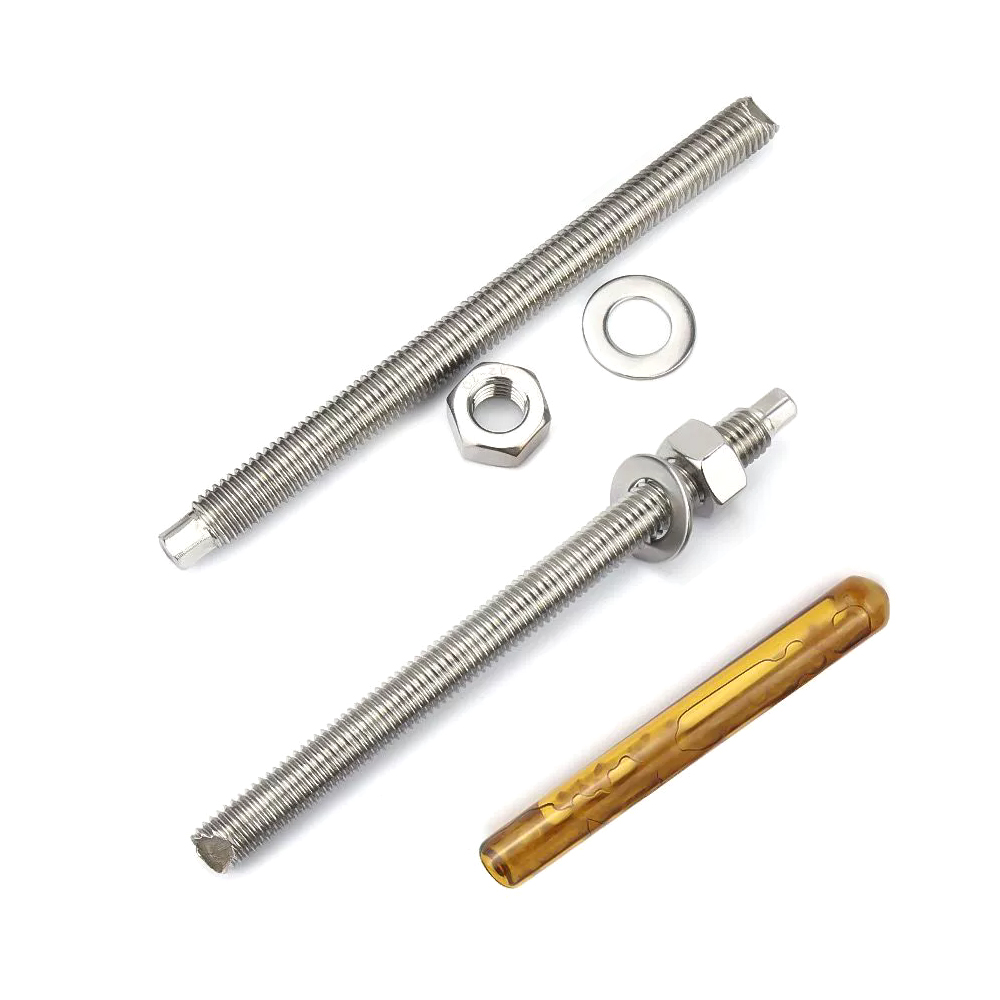

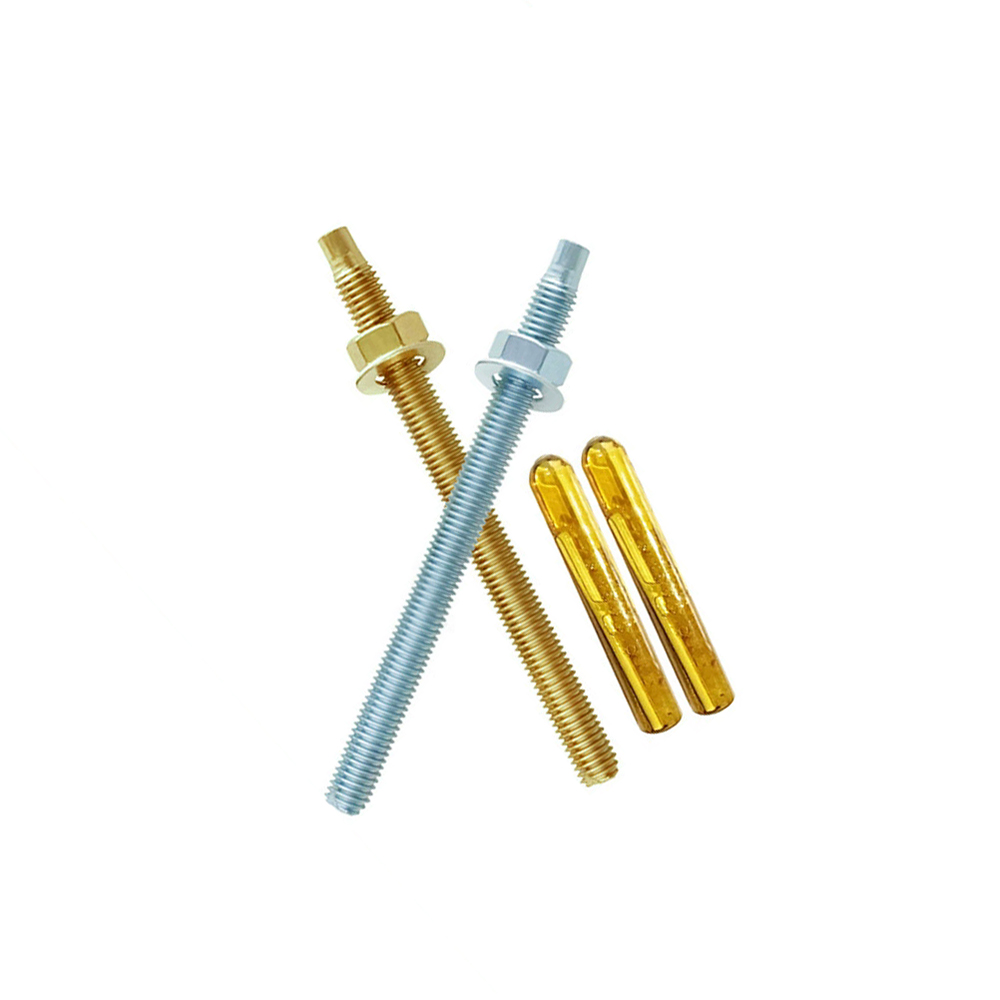

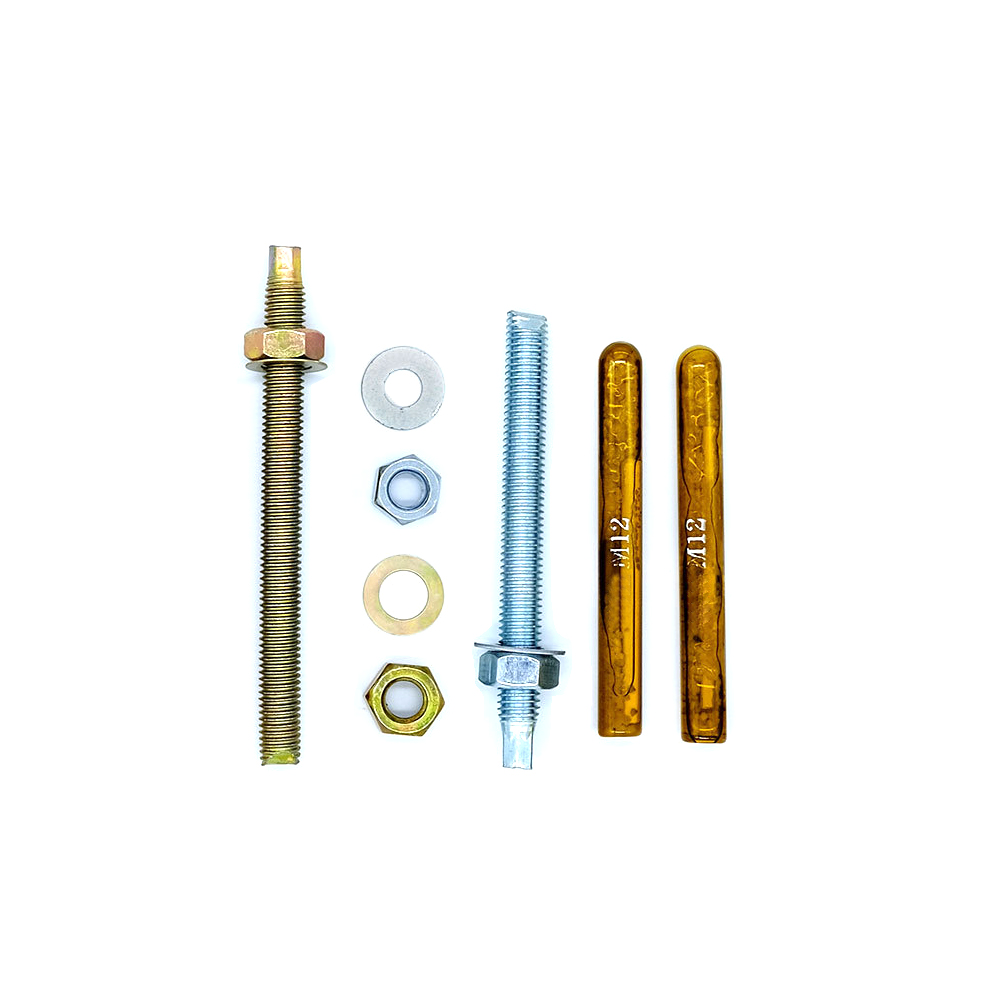

Core Components: Composed of a chemical adhesive tube (containing vinyl resin, quartz sand, and hardener), screw, washer, and nut. Anchoring is achieved through chemical reaction curing, rather than physical expansion and compression.
Core Characteristics: Excellent acid and alkali resistance, aging resistance, and seismic performance; no expansion or compression stress on the substrate; smaller requirements for installation spacing and edge distance.
Nominal Specifications | Matching drill bit diameter | Drilling depth | Effective burial depth | Ultimate pull-out force | Design pull-out force (safety factor 3.0) |
M8 | φ10mm | 80mm | 65mm | ~18 kN | ~6.0 kN |
M10 | φ12mm | 95mm | 80mm | ~28 kN | ~9.3 kN |
M12 | φ14mm | 110mm | 90mm | ~42 kN | ~14.0 kN |
M16 | φ18mm | 125mm | 110mm | ~75 kN | ~25.0 kN |
M20 | φ25mm | 170mm | 150mm | ~120 kN | ~40.0 kN |
M24 | φ28mm | 210mm | 190mm | ~175 kN | ~58.0 kN |
M30 | φ35mm | 280mm | 260mm | ~280 kN | ~93.0 kN |
Applicable Scenarios
Dry-hanging of building curtain walls, steel structure installation, building reinforcement and renovation
Highway bridge guardrails, railway tunnels, heavy equipment fixing
Underwater installation, anchoring of load-bearing structures with high seismic resistance requirements
