din6899
Weifeng/Oem
din6899

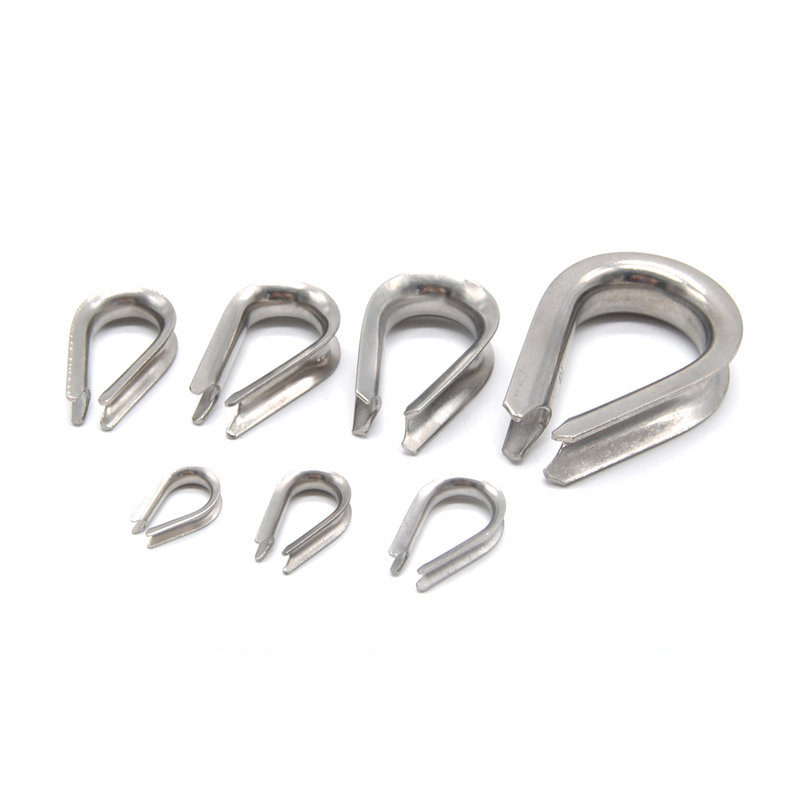

Din 6899 B type wire rope thimble is used for heavy duty rigging application, can offer more strength, sturdiness and crush resistance than din 6899 A type rope thimble, it can create reinforce loop eye to be used with other rigging accessories to form a wire rope eyelet.
Din6899 B thimebles are made from mild steel, stamping, and electro-galvanized which helps resist corrosion, the rope thimble will be suited for indoor or low-corrosive environments and meet the performance requirements of EN13411-1.
MOQ | 1 Pallet, 1 Ton or 3000USD |
Material | High Tensile Carbon Steel |
Surface finish | Electro-Galvanized (Zinc Plated) |
Sizes | From 2.5mm to 28mm |
Technique Procedure | Machining |
Standard | EN13411-1 |
HS code | 732690 |
Multiply the actual cable size.
Insert the ropes into the thimble tube.
Hold onto bearing anchor point at the end of the thimble with sleeves or wire rope clips to prevent fraying caused by friction.
Check out this article more about Wire rope thimble installation
Part No. | Diameter Rope (mm.) | Weight 100PCS (kgs.) | Dimensions(mm) | |||
A | B | C | D | |||
wf6899B0205 | 2.5 | 0.5 | 3 | 19 | 12 | 1.6 |
wf6899B0003 | 3.5 | 0.8 | 4 | 21 | 13 | 1.6 |
wf6899B0004 | 4 | 1 | 5 | 23 | 14 | 1.9 |
wf6899B0005 | 5 | 1.6 | 6 | 25 | 16 | 2.4 |
wf6899B0006 | 6 | 1.9 | 7 | 28 | 18 | 2.4 |
wf6899B0007 | 7 | 3 | 8 | 32 | 20 | 2.8 |
wf6899B0009 | 9 | 4.7 | 10 | 38 | 24 | 3.1 |
wf6899B0011 | 11 | 6.8 | 12 | 45 | 28 | 3.3 |
wf6899B013A | 13 | 8 | 13 | 48 | 30 | 3.3 |
wf6899B013B | 13 | 10 | 14 | 51 | 32 | 3.7 |
wf6899B0015 | 15 | 14.5 | 16 | 58 | 36 | 3.8 |
wf6899B0016 | 16 | 20 | 18 | 64 | 40 | 4.7 |
wf6899B0017 | 17 | 18 | 17 | 61 | 38 | 4.7 |
wf6899B0018 | 18 | 29 | 20 | 72 | 45 | 5.7 |
wf6899B0020 | 20 | 32 | 22 | 80 | 50 | 5.7 |
wf6899B0022 | 22 | 47 | 24 | 90 | 56 | 6.5 |
wf6899B0024 | 24 | 59 | 26 | 99 | 62 | 6.8 |
wf6899B0026 | 26 | 80 | 28 | 112 | 70 | 8 |
wf6899B0028 | 28 | 110 | 30 | 120 | 75 | 8 |
wf6899B0030 | 30 | 123 | 32 | 128 | 80 | 8 |
wf6899B0032 | 32 | 156 | 34 | 152 | 95 | 8.5 |
wf6899B0034 | 34 | 176 | 36 | 160 | 100 | 8.5 |
wf6899B0036 | 36 | 192 | 38 | 176 | 110 | 8.5 |
wf6899B0038 | 38 | 292 | 40 | 184 | 115 | 10.5 |
wf6899B0040 | 40 | 320 | 42 | 192 | 120 | 10.5 |
wf6899B0042 | 42 | 364 | 45 | 240 | 150 | 10.5 |
