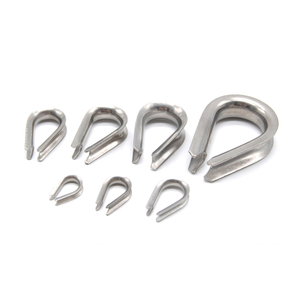

 | DIN6899 Type A Wire Rope Thimble |
| DIN6899 type A wire rope thimble is a light duty rigging thimble, can offer a more strength, sturdiness wire rope sling thimble eye to protect wire rope sling when subjected to high friction forces. It is made from mild steel, stamping, and electro-galvanized which helps resist corrosion, the rope thimble will be suited for indoor or low-corrosive environments, we also have DIN6899 Type B Wire Rope Thimble for your opt. |
The Standard Thimble is available in sizes ranging from 1/8″ to 5/8″ to ensure a perfect fit for every project. This thimble is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging and wire rope applications.
| ITEM | A (size) | B | C | D | X | Y | Z | WT (lb) |
|---|---|---|---|---|---|---|---|---|
| WF0124-0003 | 1/8″ | 0.37″ | 0.71″ | 0.03″ | 0.57″ | 0.87″ | 0.22″ | 0.01 |
| WF0124-0004 | 5/32″ | 0.37″ | 0.77″ | 0.03″ | 0.59″ | 0.97″ | 0.23″ | 0.01 |
| WF0124-0005 | 3/16″ | 0.52″ | 1.12″ | 0.04″ | 0.77″ | 1.30″ | 0.28″ | 0.02 |
| WF0124-0007 | 1/4″ | 0.69″ | 0.95″ | 0.05″ | 0.90″ | 1.38″ | 0.34″ | 0.02 |
| WF0124-0008 | 5/16″ | 0.70″ | 1.40″ | 0.06″ | 1.03″ | 1.76″ | 0.44″ | 0.04 |
| WF0124-0010 | 3/8″ | 0.94″ | 1.70″ | 0.06″ | 1.32″ | 2.30″ | 0.55″ | 0.06 |
| WF0124-0013 | 1/2″ | 1.14″ | 2.28″ | 0.09″ | 1.62″ | 2.60″ | 0.65″ | 0.14 |
| WF0124-0016 | 5/8″ | 1.45″ | 2.37″ | 0.07″ | 2.30″ | 3.20″ | 0.91″ | 0.17 |
