What Is The Difference between A Slotted Nut And A Castle Nut?

Have you ever wondered about the various types of nuts used in machinery? Understanding fasteners is crucial in industrial applications.

In this article, we will explore the differences between slotted nuts and castle nuts.

You'll learn about their designs, applications, and when to use each type effectively.

What is a Slotted Nut?

Definition and Description

A slotted nut is a type of fastener characterized by its unique design. It features vertical slots cut into its top surface, allowing for easy installation and adjustment. The flat-top profile provides a stable surface for tools, making it user-friendly in various applications.

Key Design Features:

● Vertical Slots: These slots enable the use of a cotter pin or safety wire for secure fastening.

● Flat-Top Profile: This design aids in easy handling and alignment during installation.

Standards and Specifications

Slotted nuts are manufactured according to specific standards to ensure reliability and compatibility. Some key standards include:

● DIN 935: Commonly used in Europe for slotted nuts.

● ASME B18.2.2: Relevant for American applications.

Sizes and Finishes:

Slotted nuts come in various sizes and finishes. Here are some common specifications:

These options make slotted nuts versatile for different environments.

Common Applications

Slotted nuts are widely used across various industries due to their reliability and ease of use. Here are some common applications:

● Machinery: Essential in assembling components that require frequent adjustments.

● Construction: Often used in structural applications where secure fastening is critical.

● HVAC Systems: Ideal for securing components in heating, ventilation, and air conditioning systems.

Examples of Usage:

● Conveyor Belts: Slotted nuts help in adjusting tension and alignment.

● Pump Assemblies: They provide secure fastening for components that experience vibration.

One major advantage is their cost-effectiveness for repeated disassembly. Slotted nuts can be reused with cotter pins, making maintenance easier and more economical.

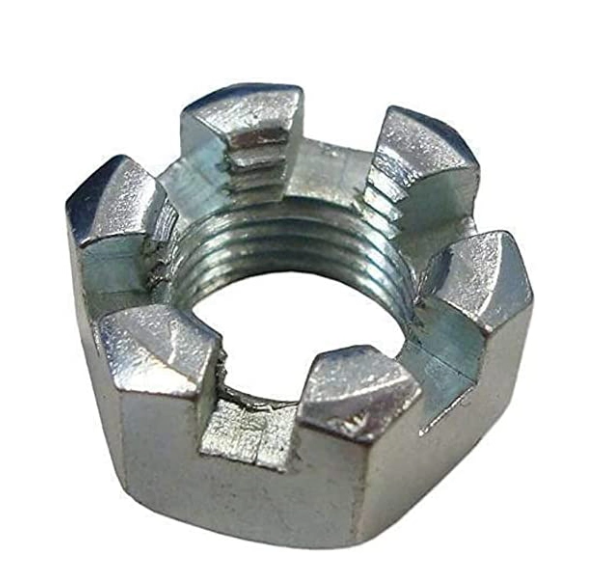

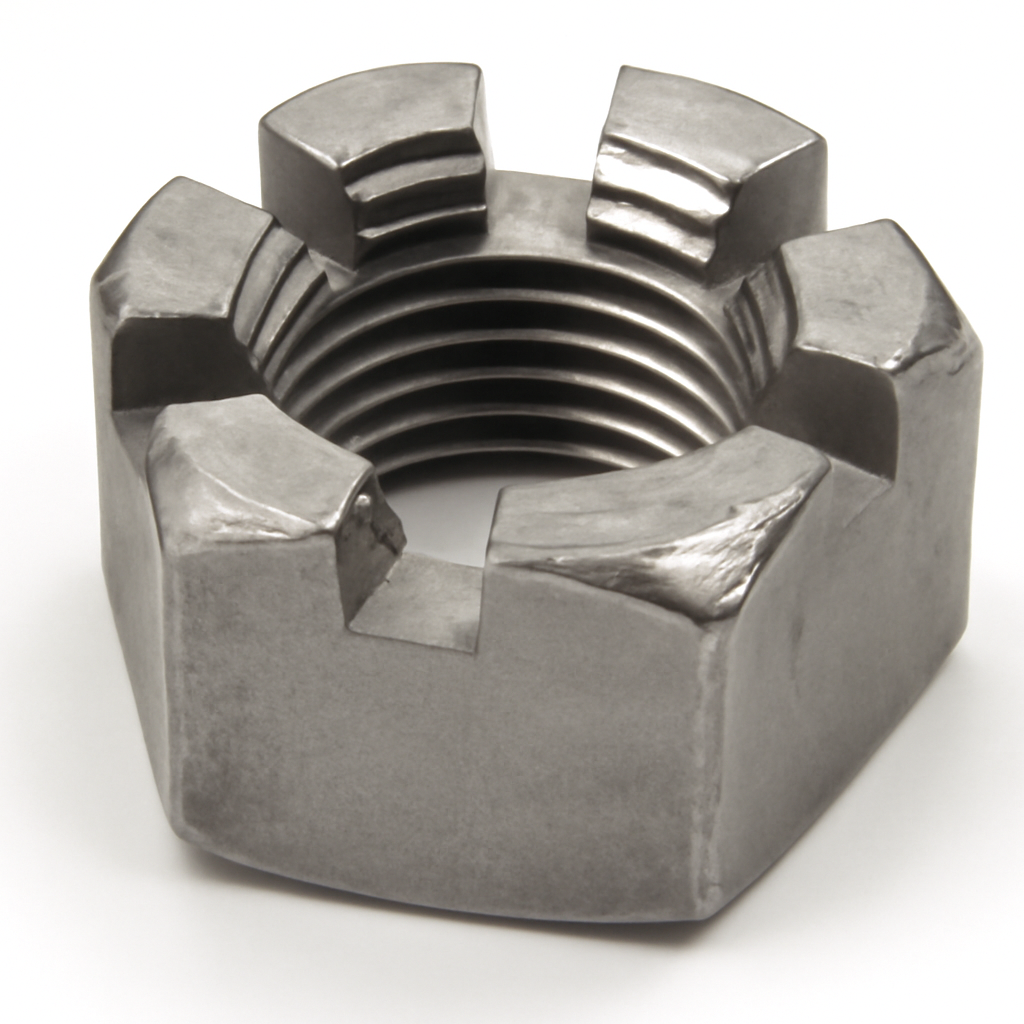

What is a Castle Nut?

Definition and Description

A castle nut is a specialized fastener recognized for its distinctive triangular notches on the top. These notches allow for secure locking with a cotter pin, preventing loosening during operation.

Unique Design Features:

● Triangular Notches: These notches provide a reliable locking mechanism.

● Robust Construction: Designed to withstand high stress and vibration.

The unique design of castle nuts offers several benefits, including enhanced security and ease of installation.

Standards and Specifications

Castle nuts adhere to specific standards to ensure quality and compatibility across various applications. Some of the relevant standards include:

● DIN 935: Commonly used in Europe for various nut types.

● ANSI/ASME B18.2.4.3M: Applicable for American-made fasteners.

Sizes and Materials:

Castle nuts come in various sizes and materials, such as:

These options provide versatility for different applications.

Common Applications

Castle nuts are widely used in industries where precision and reliability are crucial. Here are some common applications:

● Automotive: Essential for securing components that require precise torque settings.

● Aerospace: Used in critical systems where safety and performance are paramount.

Examples of Usage:

● Wheel Bearings: Castle nuts help maintain proper tension in wheel assemblies.

● Axle Assemblies: They provide secure fastening in high-stress environments.

Castle nuts are particularly preferred in low-torque, precision-critical applications. Their design ensures stability and safety, making them a go-to choice for engineers and technicians.

Key Differences Between Slotted Nuts and Castle Nuts

Design and Geometry

When comparing slotted nuts and castle nuts, their design features stand out.

● Slotted Nuts: Characterized by vertical slots cut into the top, allowing for easy alignment and installation.

● Castle Nuts: Feature triangular notches, which provide a robust locking mechanism.

Performance and Application:

● Slotted Nuts: Easier to align, making them ideal for applications requiring frequent adjustments.

● Castle Nuts: Offer superior lock security, making them perfect for high-stress environments where components may vibrate loose.

Material and Finishes

Both slotted and castle nuts can be made from various materials, affecting their durability and application.

Finishes and Corrosion Resistance:

● Slotted Nuts: Suitable for both indoor and outdoor use, especially in less corrosive environments.

● Castle Nuts: Offer superior performance in saltwater environments due to their robust locking mechanism and material choices.

Installation and Locking Mechanism

The installation process for each nut type varies significantly.

● Slotted Nuts: Installed easily, allowing for minor over-rotation. This flexibility can be beneficial in applications where frequent adjustments are needed.

● Castle Nuts: Require precise alignment during installation. The locking mechanism, which uses a cotter pin, ensures a secure fit but demands careful handling.

Effectiveness in Different Scenarios:

● Slotted Nuts: Effective in applications where adjustments are common.

● Castle Nuts: Best for scenarios where maximum security is essential.

Pro Tip:

When installing slotted nuts, the ability to slightly over-rotate can save time. In contrast, castle nuts need accuracy to ensure they lock properly.

Performance Considerations

Vibration Resistance

The design of a nut plays a crucial role in its ability to resist vibrations.

● Slotted Nuts: These nuts, while easier to install, may not hold up as well in high-vibration environments. The slots can allow for some movement, which might lead to loosening over time.

● Castle Nuts: Their unique design, featuring triangular notches, provides a more secure fit when paired with a cotter pin. This makes them particularly effective in applications like automotive suspensions, where vibration is a constant challenge.

Comparative Performance:

Cost and Availability

Cost is an important factor when choosing between slotted and castle nuts.

● Slotted Nuts: Generally, they are more affordable due to simpler manufacturing processes. Their widespread use means they are readily available in various sizes and materials.

● Castle Nuts: Typically, these nuts are slightly more expensive due to their specialized design and locking mechanism. However, they are also widely available, especially in industrial settings.

Market Availability:

● Standard Options: Both types are commonly found in hardware stores and online.

● Custom Options:

○ Slotted Nuts: Often available in custom finishes and non-standard sizes.

○ Castle Nuts: Customization options may include specific coatings for corrosion resistance or unique dimensions for specialized applications.

In summary, while slotted nuts may be more cost-effective, castle nuts provide enhanced performance in demanding environments.

When to Use Each Type of Nut

Choosing a Slotted Nut

Slotted nuts are known for their versatility and ease of use, making them a popular choice in various applications.

Preferred Scenarios:

● General Applications: Ideal for projects where frequent adjustments are necessary.

● Light to Moderate Loads: Suitable for situations where extreme locking isn’t critical.

Recommendations for Specific Applications:

● Construction Equipment: In machinery like scaffolding and temporary structures, slotted nuts allow for quick assembly and disassembly.

● Home Repairs: They work well in DIY projects, especially when you need to make adjustments without hassle.

Key Benefits:

● Easy Alignment: The slots facilitate quick installation.

● Cost-Effective: Generally more affordable than castle nuts.

Choosing a Castle Nut

Castle nuts excel in scenarios requiring precision locking and enhanced security, making them the go-to choice for critical applications.

Preferred Scenarios:

● High Vibration Environments: Perfect for applications where components experience significant movement.

● Corrosive Conditions: Their design and materials make them suitable for harsh environments.

Recommendations for Specific Applications:

● Offshore Pumps: In marine environments, castle nuts provide superior resistance to saltwater corrosion and vibration.

● Aerospace Components: Used in aircraft assemblies where safety and reliability are paramount.

Key Benefits:

● Superior Locking Mechanism: The cotter pin ensures the nut stays securely in place.

● Durability: Designed to withstand extreme conditions, making them ideal for critical applications.

By understanding the specific scenarios and applications for each type of nut, you can make an informed choice that meets your project's needs.

Conclusion

In this article, we explored the differences between slotted nuts and castle nuts.

Slotted nuts are versatile and easy to use, ideal for general applications. Castle nuts provide superior locking and durability, suited for high-stress environments.

Choosing the right nut is crucial for your project’s success. Always consider your specific needs when deciding between these two types.

FAQs

What are the main advantages of slotted nuts?

A: Slotted nuts offer versatility, ease of installation, and cost-effectiveness for general applications.

Can slotted nuts be used in high-torque applications?

A: While they can be used in moderate torque settings, slotted nuts may not be ideal for high-torque applications due to potential loosening.

How do I determine the right size of nut for my application?

A: Measure the diameter and thread pitch of the bolt, then match it with the appropriate nut size.

Are there any safety considerations when using slotted or castle nuts?

A: Yes, ensure proper installation and consider load conditions to prevent failure.

What are the competitive insights regarding pricing and market availability?

A: Slotted nuts are generally more affordable and widely available, while castle nuts may cost more due to their specialized design.
